powerpoint: images upside down

[Cihan Altinay]

Hi,

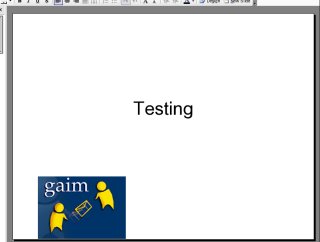

When using MS Powerpoint 2003 images are drawn upside down in fullscreen
(presentation) mode but not in design mode.
Also, text is drawn correctly as seen on the attachments.

I would appreciate a hint on what traces/logs to provide for more info
as the dc & win output is quite long.

Thanks,
Cihan

[Uwe Bonnes]

> > > > > "Cihan" == Cihan Altinay <cihan(a)uq.edu.au> writes:

Cihan> Hi, When using MS Powerpoint 2003 images are drawn upside down in
    Cihan> fullscreen (presentation) mode but not in design mode.  Also,
    Cihan> text is drawn correctly as seen on the attachments.

    Cihan> I would appreciate a hint on what traces/logs to provide for more
    Cihan> info as the dc & win output is quite long.

Is the error reproducable with the downloadable powerpoint viewer?

Can you perhaps put a small powerpoint file online, showing that error?


This will make things easier for others to pick up. Also perhaps pit these
files and description in the bugs database.

Bye

--
Uwe Bonnes                bon(a)elektron.ikp.physik.tu-darmstadt.de

Institut fuer Kernphysik  Schlossgartenstrasse 9  64289 Darmstadt
--------- Tel. [phone] -------- Fax. [phone] ----------

[Cihan Altinay]

Quoting Uwe Bonnes <bon(a)elektron.ikp.physik.tu-darmstadt.de>:
> > > > > > "Cihan" == Cihan Altinay <cihan(a)uq.edu.au> writes:
>
> Cihan> Hi, When using MS Powerpoint 2003 images are drawn upside down in
>     Cihan> fullscreen (presentation) mode but not in design mode.  Also,
>     Cihan> text is drawn correctly as seen on the attachments.
>
> Cihan> I would appreciate a hint on what traces/logs to provide for more
>     Cihan> info as the dc & win output is quite long.
>
> Is the error reproducable with the downloadable powerpoint viewer?

Unfortunately, Powerpoint Viewer 2003 presents a black screen to me (see
bug #3905 which is apparently fixed, but not for me...).
> Can you perhaps put a small powerpoint file online, showing that error?
> This will make things easier for others to pick up. Also perhaps pit these
> files and description in the bugs database.

Thanks for the hints. Fortunately this gets fixed applying the patch
Huw mentioned.
Should I still open a bug report and mention the patch?

Cihan

[Huw D M Davies]

On Mon, Nov 28, 2005 at 05:58:50PM +1000, Cihan Altinay wrote:
> Hi,
>
> When using MS Powerpoint 2003 images are drawn upside down in fullscreen
> (presentation) mode but not in design mode.
> Also, text is drawn correctly as seen on the attachments.
>
> I would appreciate a hint on what traces/logs to provide for more info
> as the dc & win output is quite long.

It's because there's no implementation of SetBitmapBits for dib
sections.  Alexandre committed this patch to the CrossOver tree, I'm
not sure why it didn't make it into WineHQ.

Huw.
--
Huw Davies
huw(a)codeweavers.com
Index: dlls/gdi/bitmap.c
===================================================================
RCS file: /cvstrees/crossover/office/wine/dlls/gdi/bitmap.c,v
retrieving revision 1.1.1.7.6.2
retrieving revision 1.1.1.7.6.3
diff -u -p -r1.1.1.7.6.2 -r1.1.1.7.6.3
--- dlls/gdi/bitmap.c	7 Oct 2005 16:42:05 -0000	1.1.1.7.6.2
+++ dlls/gdi/bitmap.c	24 Oct 2005 11:31:35 -0000	1.1.1.7.6.3
@@ -381,6 +381,31 @@ LONG WINAPI SetBitmapBits(
 	count = -count;
     }

+    if (bmp->dib)  /* simply copy the bits into the DIB */
+    {
+        DIBSECTION *dib = bmp->dib;
+        char *dest = dib->dsBm.bmBits;
+        DWORD max = dib->dsBm.bmWidthBytes * dib->dsBm.bmHeight;
+        if (count > max) count = max;
+        ret = count;
+
+        if (bmp->dib->dsBmih.biHeight >= 0)  /* not top-down, need to flip contents vertically */
+        {
+            dest += dib->dsBm.bmWidthBytes * dib->dsBm.bmHeight;
+            while (count > 0)
+            {
+                dest -= dib->dsBm.bmWidthBytes;
+                memcpy( dest, bits, min( count, dib->dsBm.bmWidthBytes ) );
+                bits = (char *)bits + dib->dsBm.bmWidthBytes;
+                count -= dib->dsBm.bmWidthBytes;
+            }
+        }
+        else memcpy( dest, bits, count );
+
+        GDI_ReleaseObj( hbitmap );
+        return ret;
+    }
+
     /* Only get entire lines */
     height = count / bmp->bitmap.bmWidthBytes;
     if (height > bmp->bitmap.bmHeight) height = bmp->bitmap.bmHeight;

[Cihan Altinay]

Quoting Huw D M Davies <h.davies1(a)physics.ox.ac.uk>:
> On Mon, Nov 28, 2005 at 05:58:50PM +1000, Cihan Altinay wrote:
> > Hi,
> >
> > When using MS Powerpoint 2003 images are drawn upside down in fullscreen
> > (presentation) mode but not in design mode.
> > Also, text is drawn correctly as seen on the attachments.
> >
> > I would appreciate a hint on what traces/logs to provide for more info
> > as the dc & win output is quite long.
>
> It's because there's no implementation of SetBitmapBits for dib
> sections.  Alexandre committed this patch to the CrossOver tree, I'm
> not sure why it didn't make it into WineHQ.

Wow, with this patch everything displays perfectly, thanks!
I, too, wonder why it isn't in wine yet?!
> Huw.

Thanks again,
Cihan
